EX-JB-H-POE-8-BD (Junction Box)

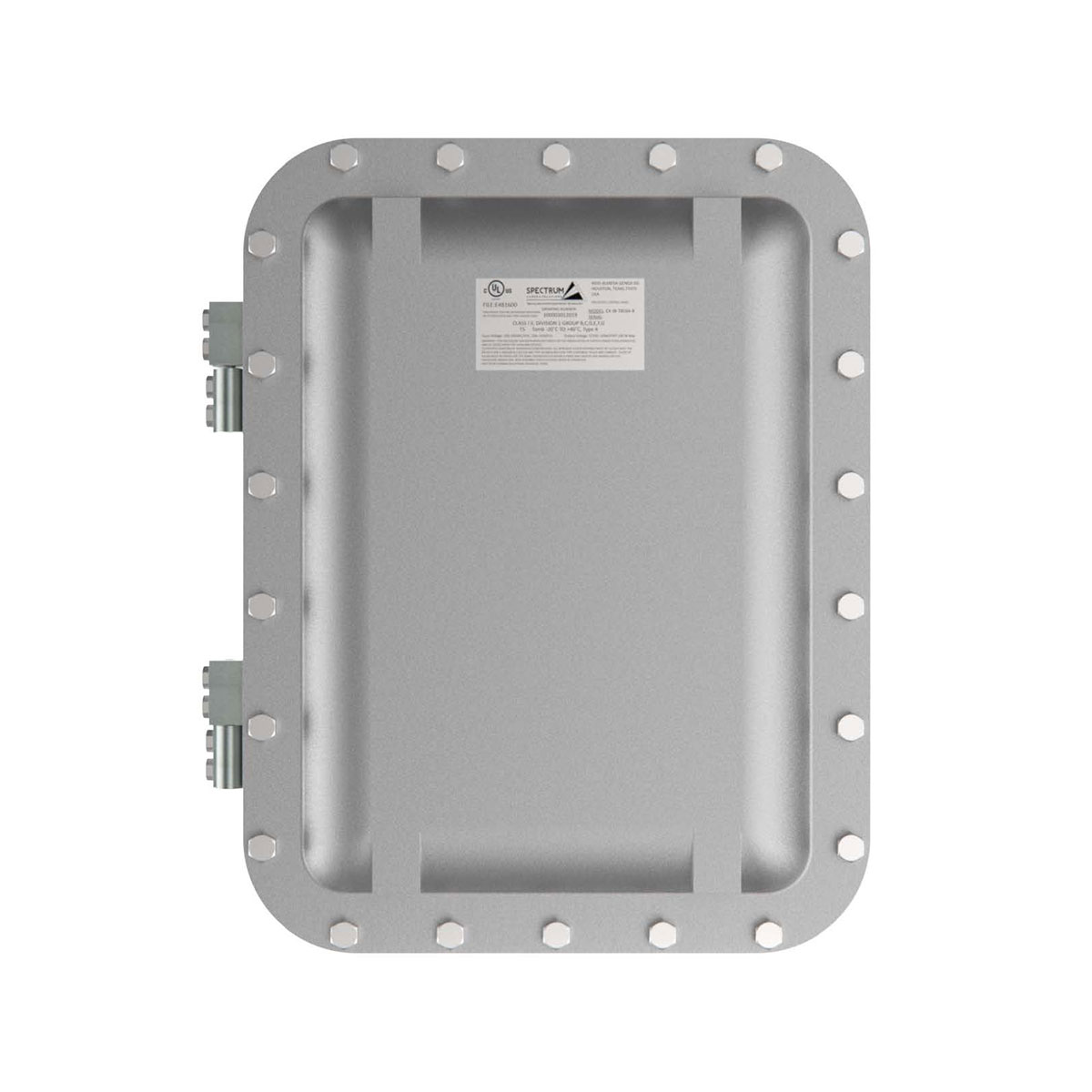

Spectrum EX-JB-H-POE-8-BD - Explosion-proof junction box

Spectrum EX-JB-H-POE-8-BD houses the The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and temperatures from -25°C to +40°C , making it perfect for high demanding installation such as critical infrastructures. UL Listed Class I II Div 1 Gr. BCDEFG T5.

Features:

• Manage up to 8 devices
• NEMA TS-2 Compliant
• UL Listed
• Class I/II
• Division 1
• Groups BCDEFG T5
• -25°C to +40°C
• Max PoE Budget 480 watts, 60 watts for (8) ports simultaneously, up to 90 watts on (4) ports simultaneously.

Switch Details:

The SISPM1040-582-LRT is a managed PoE++ switch suitable for connecting and powering devices in hardened environments.
It has (8) 10/100/1000 PoE++ ports with (2) 100/1000 dual speed SFP slots. The switch can supply up to 90 Watts per port on (4)
ports or 60 Watts per port on (8) ports simultaneously. The switch also includes the embedded Device Management System (DMS)
software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides
security integrators with lower overall cost, less downtime and easier management of the entire PoE+ network

• Protocols - CSMA/CD

• Technology - Store-and-forward switching architecture

• Connectors -  (8) 10/100/1000 Mbps RJ-45 ports, (2) 100/1000 Mbps SFP slots ,(1) Console RJ-45 port

• MAC Address - 8K MAC address table

• Backplane - 20 Gbps

• DIP Switch - Rapid Ring Setting (2-Pin)

• Reset Button - Reset the switch, restore factory default

• Digital Output (relay) - 24VDC/1A

• Digital Input - Level 0 (low): 0V to 6V, Level 1 (high): 10v to 24V

• Power Consumption - 13 Watts (without PoE)

• Power Input - 52 - 57VDC

• Power over ethernet - Max PoE Budget 480 watts, 60 watts for (8) ports simultaneously, up to 90 watts on (4) ports simultaneously


General

Dimensions -  444.5 x 342.9 x 215.9 mm ( 17 1/2 x 13 1/2 x 8 1/2 in. )
Weight -  28.21 kg ( 62.2 lb )
Material -  Aluminum
Operating Conditions: -25°C to +40°C
UL Listed File Number: E481600

Explosion-proof Certifications:

Class I/II
Division 1
Groups BCDEFG T5

Warranty - 3-year limited warranty
