Inmarsat Beam Active SMA/TNC Cable Kit - 13m/42.7ft (ISD933)

The Inmarsat Beam Active SMA/TNC Cable Kit - 13m/42.7ft (ISD933) is a professional-grade product designed for reliable performance in business-critical and industrial environments. Built to meet commercial standards, it is suitable for daily operational use.

The ISD933 is a high-quality 13-metre (43 feet) antenna cable kit that provides a flexible installation option for a variety of satellite communication setups. Specifically designed for Inmarsat GSPS applications, this kit bridges the distance between a Beam docking station and an active antenna in marine, transport, or fixed-site environments. It ensures that signal integrity and necessary power are maintained over a medium-range distance.

Key Product Features

• Extended Reach: Provides 13 metres of cabling for installations where the antenna must be placed further from the docking unit.
• Dual Functionality: The kit includes both an Inmarsat satellite antenna cable and a dedicated GPS antenna cable.
• Active Support: Engineered to carry the DC power required for the internal amplifiers of Beam active antennas.
• Precision Terminated: Comes pre-terminated with SMA and TNC connectors to ensure a secure, low-loss connection.
• Robust Design: Optimized for durability in commercial, transport, and fixed installations.

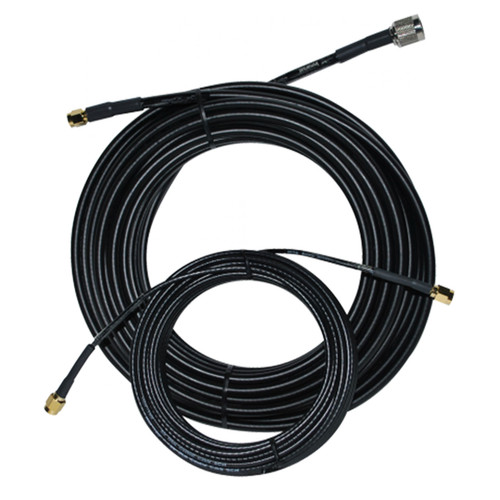

What’s Included

• 1x 13m (42.7ft) Active Inmarsat Satellite Cable (TNC-m to SMA-m)
• 1x 13m (42.7ft) Active GPS Cable (SMA-m to SMA-m)

Installation & Usage

The ISD933 kit is designed for versatile deployment across land and sea platforms where 13 metres of cable length is required.

• Route the cables carefully between the antenna and the docking station, ensuring you do not exceed the minimum bend radius (14mm for satellite cable).
• Connect the TNC(m) connector to the antenna and the SMA(m) connector to the docking terminal.
• For the GPS cable, connect the SMA(m) connectors to the respective GPS ports on the antenna and docking station.

Usage Tip: When installing, avoid repeated bending of the cables in tight corners to maintain the 51mm repeat bend radius and prevent internal signal interference.

Main Specifications

• Satellite Cable Length: 13m / 42.7ft
• GPS Cable Length: 13m / 42.7ft
• Satellite Cable Diameter: 4.95 mm
• GPS Cable Diameter: 2.8 mm
• Kit Weight: 0.6 kg (1.32 lbs)

Technical Specifications

• High-performance RF cable kit featuring 50 Ohm output impedance, pre-terminated SMA/TNC connectors, and specific environmental ratings for commercial and heavy industry use.

Key Capabilities

• Maintains high-gain satellite signal strength over a 13m run
• Delivers reliable DC power to active antenna heads without extra wiring
• Supports full Inmarsat GSPS voice, data, and SMS services
• Enables accurate GNSS (GPS) L1 positioning for maritime and transport tracking

Compatibility

The ISD933 cable kit is compatible with the following Beam Inmarsat Antenna models ONLY: ISD710, ISD715, and ISD720.

Compatibility Note: This kit is NOT for use with the ISD700 Passive Antenna.

Ideal Applications

• Medium-sized maritime vessels requiring bridge-to-mast connectivity
• Large transport vehicles and long-haul trucks
• Fixed remote field offices and industrial outposts
• Emergency response command vehicles

Product Information

• Product Category: Satellite Antenna Cables
• Manufacturer: Beam Communications
• Model: 13m Active SMA/TNC Cable Kit
• Product Code: ISD933
• Product Type: Active Cable Kit
• Product Status: Genuine manufacturer product
