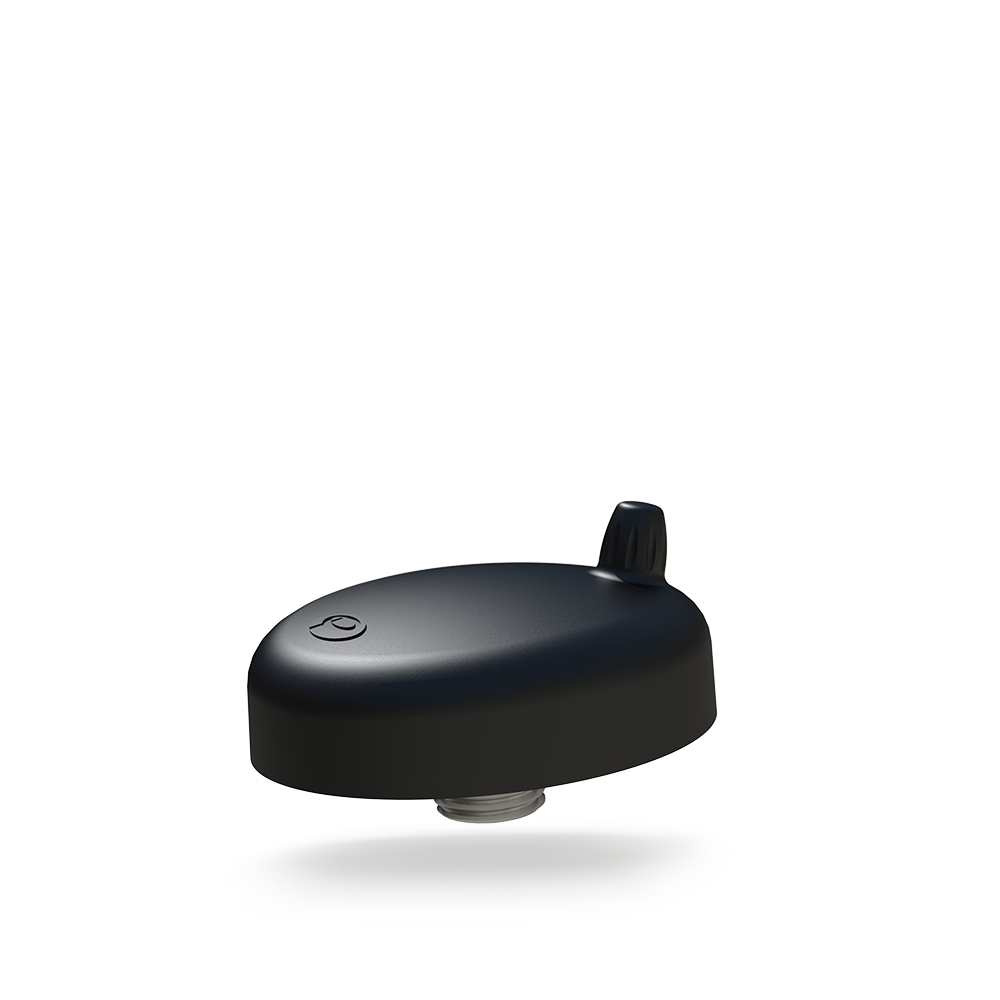

Panorama GPS/GNSS Combination Base - Panel Mount
The GPSK antenna base provides a dual function antenna solution incorporates an active GNSS antenna module with 26dB gain LNA, which supports GPS L1, GLONASS G1, BeiDou and Galileo E1 services. The base can be fitted with a range of VHF or UHF whips depending on the installation requirement and can be mounted on panels up to 6mm thick in a single 15mm hole. An extender kit is available as an option for use when fitting to a thick mounting panel.
Specification: | |
| Max Input Power(W) | 60 |
| Typical VSWR | <2.5:1 |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS Frequency Range | 1559-1612MHz |
| LNA GAIN (dB) | 30 |
| Number of GPS Elements | 1 Module |
| Colour | Black |
| Length | 60 (mm) | 2.36 (in) |
| Width | 50 (mm) | 1.97 (in) |
| Height | 18.5 (mm) | 0.73 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| Cable Length – Whip | 0.3 (m) | 0.98 (ft) |
| Cable length – GPS | 0.3 (m) | 0.98 (ft) |
| Cable Type (Whip) | RG174 |
| Cable Type (GPS) | RG174 |
| Connector (GPS) | FME (f) |
| Connector (VHF/UHF) Whip | FME (m) |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| IP Rating | IP65 |
| Technology | GPS; GNSS |
